圓筒篩廣泛用于砂金選礦篩分、分級清洗砂礦。工作原理是通過沿軸心轉動，并利用角度（6°-12°）使物料在篩筒內（透篩）向前運動。筒體由編織網或鋼板穿孔制成，筒體由電機帶動傳動系統旋轉，常用于洗礦，洗砂，分級，脫泥等。

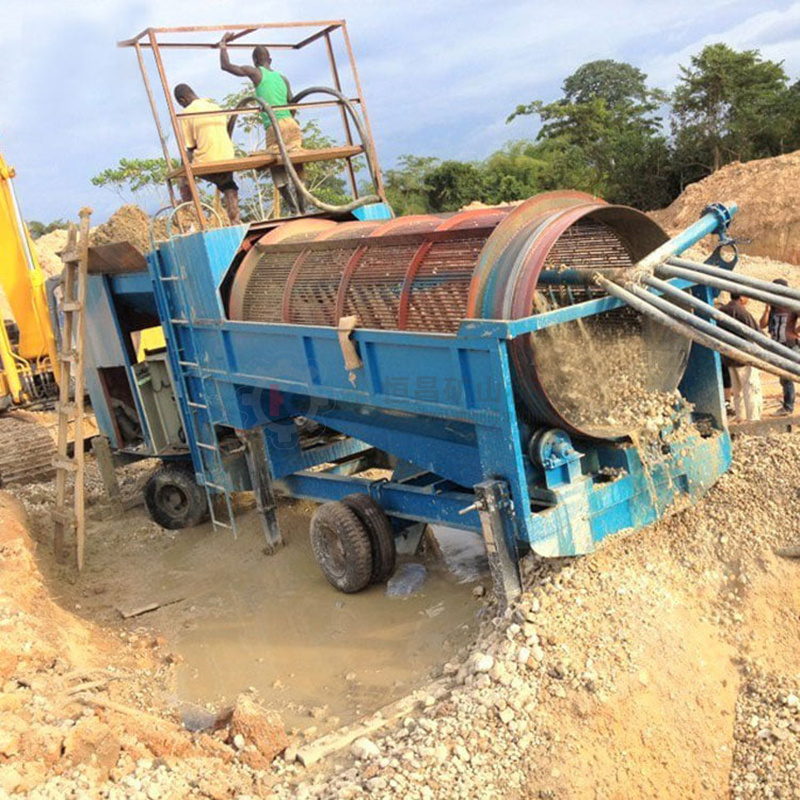

Rotary screen is widely used for alluvial gold sieving and graded washing. It working principle is to enable the materials inside screen drum (passage) to move forward through the rotation around axis and the angles (6°-12°). The drum body is made of mesh grid or perforated steel plate. The motor drives the transmission system to rotate. This drum is frequently used for ore washing, sand washing, grading and desliming etc.
| 型號規格 | 給礦粒度 Feed Size | 篩孔尺寸 Opening Size | 處理能力 Capacity | 筒體轉速 Cylinder Speed | 功率 Power | 質量 weigth |
|---|---|---|---|---|---|---|
| mm | mm | t/h | r/min | kw | t | |
| YTS800×1000 | ≤10 | 1-10 | 10-15 | 20 | 1.5 | 1.2 |
| YTS1000×2000 | ≤15 | 1-15 | 20-50 | 15-19 | 4 | 3.3 |
| YTS1200×3000 | ≤15 | 1-15 | 50-100 | 15-19 | 5.5 | 4.3 |
| YTS1400×1500 | ≤20 | 1-15 | 50-100 | 13-18 | 5.5 | 4.9 |
| YTS1500×3000 | ≤20 | 1-20 | 100-150 | 13-18 | 7.5 | 5.3 |
| YTS1500×4500 | ≤20 | 1-20 | 100-200 | 13-18 | 7.5 | 6 |
| YTS1800×4800 | ≤30 | 1-30 | 200-250 | 13-18 | 8.5 | 7.5 |
| YTS2000×2000 | ≤50 | 1-50 | 200-250 | 13-16 | 11 | 7.6 |
| YTS2000×4000 | ≤50 | 1-50 | 200-300 | 13-16 | 11 | 9 |
| YTS3000×5000 | ≤50 | 1-50 | 250-400 | 10-12 | 15 | 11 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
