金礦設備
主頁 > 產品中心 > 金礦設備

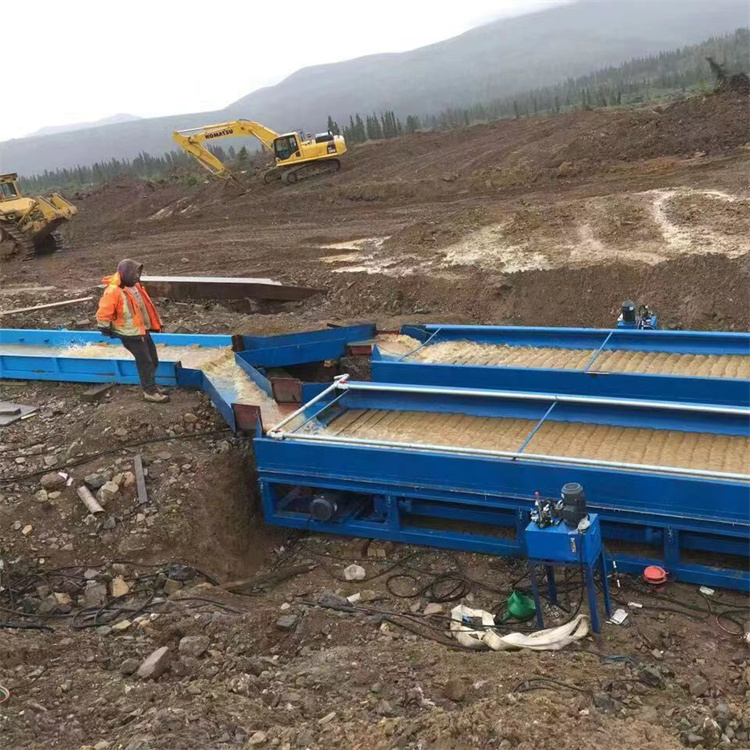

CGLC 120A型雙層組合式砂金選礦溜槽 Comb

選礦溜槽

一、概述

CGLC 120A型雙層組合式砂金選礦溜槽是我院、廠生產的采金設備系列產品之一,經過多年的生產實驗,多次改進、創新,產品的參數質量不斷提高,深受國內外采金用戶的好評。

它具備以下特點:

1、金礦砂處理量大,每小時可洗礦砂    120 m3/h;

2、結構合理,強度高,可拆裝性強,便于運輸搬遷;

3、采金回收率高,回收率可達到80-85%,不但能回收粒狀金片狀金,還可回收微粒金;

4、適應性很強,可在任何條件的礦體內選礦。

二、主要技術參數

礦砂處理量m3/h120
總用水量m3/h882
12"寸泵(主噴水管)m3/h792
4"寸泵m3/h90
電機總容量kw37
12"寸泵電機功率kw22
4"寸泵電機功率kw7.5
主溜槽m5.8
副溜槽m7.3
溜槽寬度
主溜槽m1.0
副溜槽(上口)m0.8
副溜槽(下口)m1.1
溜格數
主溜格(個)8
副溜格(兩邊)(個)22
溜槽安裝角度(°)10~12
塑料毛氈總長m21
外形尺寸m12.3×4×2.2
總質量t11


型號規格 Model CGLC120A CGLC60A CGLC40A
礦砂處理量Mineral sand handling capacitym3/h12060-8040
總用水量Overall water consumptionm3/h882882585
12"寸泵(主噴水管)12'' pump (major water spray ipe)m3/h792792540
4"寸泵4'' pumpm3/h909045
電機總容量Overall capacity of motorkw373225
12"寸泵電機功率12''pump motor powerkw222217
4"寸泵電機功率4''pump motor powerkw7.57.55.5
主溜槽Primary sluicem5.85.85
副溜槽Secondary sluicem7.37.36.2
溜槽寬度Sluice width
主溜槽Primary sluicem1.01.08
副溜槽(上口)Secondary sluice (upper opening)m0.80.80.608
副溜槽(下口)Secondary sluice(Lower opening)m1.11.080.838
溜格數No. of sluice lattice
主溜格Primary sluice lattice(個)898
副溜格(兩邊)Secondary sluice lattice(two edges)(個)222218
溜槽安裝角度Sluice mounting angle(°)10~1210-1211-12
塑料毛氈總長Overall length of plastic feltm212115
外形尺寸Outside dimensionm12.3×4×2.212.3×4×2.211×2.5×1.84
總質量Overall qualityt11118

三、結構及作用

1、上料臺:是承裝礦砂料的部位,也是充分造漿的部位。

2、篩分裝置:篩分裝置由篩板和大小分流箱組成。

3、溜槽:溜槽分主溜槽、副溜槽。主溜槽在中間,副溜槽分置兩側。是采金選礦的主要部位。

1. General

CGLC                    120A Combinational Placer Gold Separation Sluice is          among a series of gold separating equipment manufactured by our Institute.          After many years of production practice and with improvements and innovations          having been made many times, the product has kept upgrading in terms of          performance and quality and was well received by users at home and abroad.The          product has obtained patent from China National Patent Bureau.

The product has the          following features:

A. Large gold ore handling capacity with          gold washing of                    120m3/h.

B.Rational construction, high strength and          convenient dismounting, easy for transport and transfer.

C. High recovery of gold mining up to          80-85, capable of recovering not only granular and platy gold but also fine          grained gold.

D. Strong adaptability, applicable for ore          separation at any condition.

2.Major Technical Data

Mineral sand                handling capacitym3/h120
Overall water                consumptionm3/h882
12'' pump (major                water spray ipe)m3/h792
4'' pumpm3/h90
Overall capacity                of motorkw37
12''pump motor                powerkw22
4''pump motor                powerkw7.5
Primary sluicem5.8
Secondary sluicem7.3
Sluice width
Primary sluicem1.0
Secondary sluice                (upper opening)m0.8
(Lower opening)m1.1
No. of sluice                lattice
Primary sluice                lattice(Piece)8
Secondary sluice                lattice(two edges)(Piece)22
Sluice mounting                angle(°)10~12
Overall length                of plastic feltm21
Outside                dimensionm12.3×4×2.2
Overall qualityt11

3. Structure and function

A.Feeding          platform:place where mineral sand material is carried and slurry is produced.

B.Screening          apparatus: made up of screen plate and distribution boxes of various sizes.

C.Sluice:consisting          of primary sluice and secondary sluice with the primary sluice located in the          middle and the primary sluices at side; a major part.
