行星球磨機是在轉盤上裝有四個球磨罐，當轉盤轉動時球磨罐自轉的同時進行公轉運動，即行星運動。罐中磨球在高速運動中對物料進行研磨和混合。該產品能用干濕兩種方法粉碎和混合粒度不同，材料各異的產品，產品最小粒度可達到0.1微米。是混合、細磨、小樣制備、新產品研制和小批量生產高新技術材料的必備裝置。廣泛應用于地質、礦產、冶金、電子、建材、陶瓷、化工、醫藥和環保等行業。

As to planetary ball mill, four mill pots are installed on the rotary disk. When the rotary disk is rotating, the mill pots revolve as they rotate, i.e. make planetary motion. The grinding ball in the pot grinds and blends the materials during high-speed movement. This machine can crush and mix products of different granular sizes and materials through dry grinding and wet grinding. The minimum granular size of products can be as small as 0.1μm. It is a necessary device to blend and mill materials, prepare sample, and manufacture small batches of hi-tech materials. Such mills are widely applied in industries including geology, mineral, metallurgy, electronics, building material, ceramics, chemicals, medicine, environmental protection, etc.

一、特點

I. Characteristic

1. 球磨罐采用行星運動，球磨效率高、粒度細。

1. The mill pot makes planetary motion. The grinding efficiency is high and the particle sizes of products after grinding are fine.

2. 一次可同時獲得四種大小不同、材料各異的樣品。

2. Four samples of different sizes and materials can be obtained at one time.

3. 無級調速，可根據試驗結果選定理想轉速。

3. Stepless speed regulation is adopted for it. Ideal rotating speed can be selected according to test result.

4. 裝有定時關機、自動定時正反轉裝置，根據需要可自由選擇、實用方便。

4. It is equipped with timing off and automatic timing positive and negative rotation device. Free choice can be made based on actual needs, which is very practical and convenient.

5. 本機具有重心低、剛性好、機構緊奏、操作方便、安全可靠、噪聲低、無污染、損耗小等優點。

5. This machine has advantages such as low center of gravity, good rigidity, compact structure, easy operation, safety and reliability, low noise, no pollution, and low loss.

二、技術參數

Ⅱ. Technical Parameters

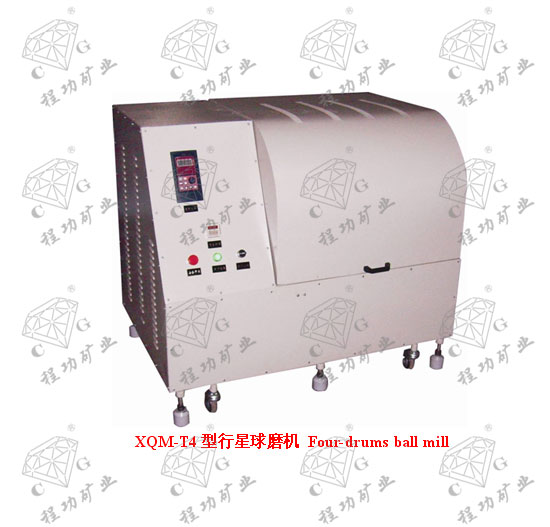

注： XQM-T4，為裝4個 1L體積球磨罐的行星球磨機
