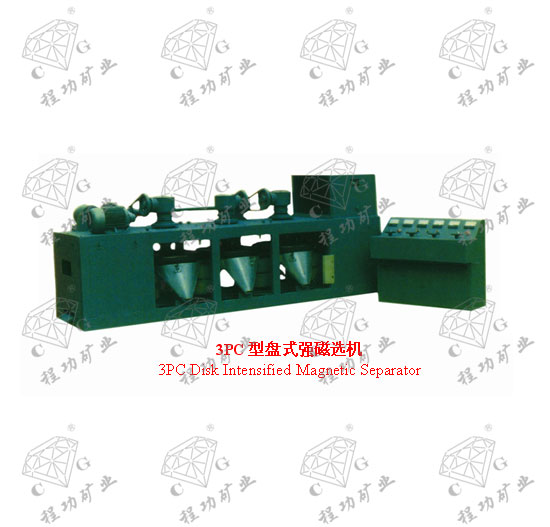

試驗室3PC-600型盤式強磁選機技術參數 T

本機系于式強磁選機，適用于鈦鐵礦、稀土礦、鉻鐵礦、鎢、錫礦、褐鐵礦、鈮、鉭礦、鋯英石、金紅石、獨居石、紅柱石、石榴石、蘭晶石、長石、石英等各種有磁性差異礦物的分選或非金屬礦物除鐵。

通過本機一次可分選出4種產品。

主機由給礦裝置、弱磁滾筒、傳動部分、物料輸送裝置、磁盤、電磁系統、機架等組成。電控部分由控制、調壓、整流、儀表等元件組成。結構緊湊，性能穩定，安裝簡易，使用維護方便。

The device is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.

4 varieties of products can be obtained by separation of the device.

Main device comprises feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance.

型號規格	單位	3PC-500	3PC-600	3PCX600
磁場強度	毫特	距帶面2㎜盤齒1700	距帶面2㎜盤齒1800	距帶面2㎜盤齒2000
磁盤數量	個	3	3	3
磁盤直徑	mm	500	600	600
磁盤轉速	r/min	25～40	22-38	22-32
電源	V	380	380	380
激磁線圈	組	4	4	4
配用電機	kw	0.75	1.5	1.5
激磁功率	kw	1.5	1.6	1.6
線圈溫升	℃	65	65	65
線圈額定電流	A	1.1～1.8	1.2-1.9	1.2-2.2
使用定額		連續	連續	連續
供料寬度	mm	210	300	300
原料粒度	mm	≤2	≤2	≤2
處理量	kg/h	100～500	120-800	80-800
外形尺寸	mm	2800×800×1220	3200×870×1160	3150×900×1250
質量	kg	1900	2200	2300

Model & Specification	Uite	3PC-500	3PC-600	3PCX600
Magnetic intensity	Hauteur	Distance to belt surface 2㎜ Disk teeth 1700	Distance to belt Surface 2㎜ Disk teeth 1800	Distance to belt 2㎜ Disk teeth 2000
Number of magnetic disk	Piece	3	3	3
Diameter of magnetic disk	mm	500	600	600
Revolution of magnetic disk	r/min	25～40	22-38	22-32
Power supply	V	380	380	380
Exciting coil	Unit	4	4	4
Matching motor	kw	0.75	1.5	1.5
Exciting power	kw	1.5	1.6	1.6
Coil temperature rise	℃	65	65	65
Rated current of coil	A	1.1～1.8	1.2-1.9	1.2-2.2
Duty rating		Continuous	Continuous	Continuous
Feed width	mm	210	300	300
Feed size	mm	≤2	≤2	≤2
Processing capacity	kg/h	100～500	120-800	80-800
Outside dimension	mm	2800×800×1220	3200×870 ×1160	3150×900 ×1250
Mass	kg	1900	2200	2300
