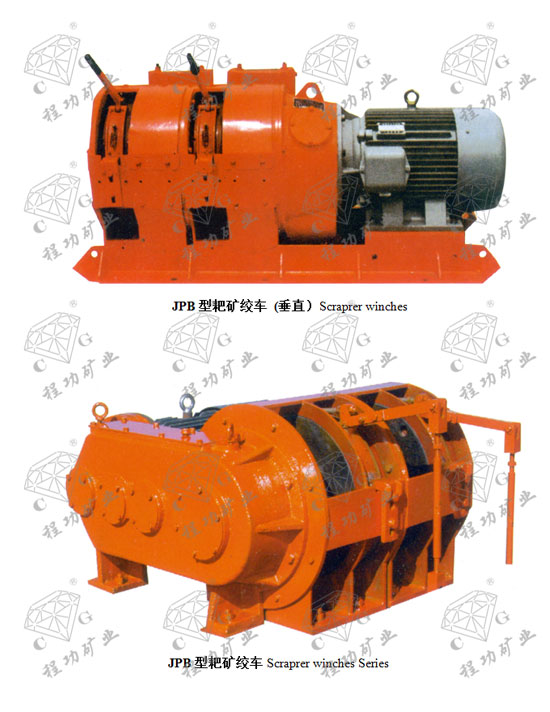

JPB型耙礦絞車 Scraprer winches
JPB系列耙礦絞車主要用于金屬礦煤及其它礦場的地下或露天礦石運搬及充填作業。主要用于水平耙運，也可用于傾坡耙運，不能作為提升設備。司機可以在絞車旁邊用手操縱，也可用距絞車數米到數十米處用按鈕實行距離操作。平行布置的耙礦絞車與PB系列耙斗裝巖機主機通用。
Series JPB Scraper Winches are mainly used in the underground or open pit of metal or other mines for the purpose oftransfering or filling or on a small slope,but not forl certical lifting or lowering. It can be operated manually or by remotecontrol with push buttonsfrom a distance of a few to doxens metres.
| 型號規格 Model | 單位Uite | 2JP-7.5 3JP-7.5 | 2JP-15 3JP-15 | 2JP-30 3JP-30 | 2JP-55 3JP-55 | 2JP-75 | 2JP-90 | 2JP-110 | 2JPP-17 | 2JPP-30 | |
| 工作卷筒平均拉力 Average Puling Forceof Working Drum | KN | 8 | 14 | 28 | 50 | 54 | 63 | 80 | 15 | 28 | |
| 工作鋼繩平均速度 Average Speed of Working Rope | m/s | 1 | 1.1 | 1.2 | 1.2 | 1.3 | 1.3 | 1.3 | 1.1 | 1.2 | |
| 工作鋼繩直徑 Dameter of Working Rope | mm | 9.3 | 12.5 | 15.5 | 18.5 | 20 | 23 | 24.5 | 14 | 17 | |
| 工作卷筒容繩量 Rope Capacity if Working Drum | m | 45 | 80 | 90 | 100 | 180 | 125 | 110 | 80 | 85 | |
| 電動機功率 Revolutio power | kw | 7.5 | 15 | 30 | 55 | 75 | 90 | 110 | 17 | 30 | |
| 電動機轉速 Revolutio Speed | m/s | 1440 | 1460 | 1470 | 1480 | 1480 | 1480 | 1480 | 1450 | 1450 | |
| 外形尺寸Overall Dim. | 長Length | mm | 1210 1445 | 1525 1900 | 1685 2040 | 2070 2510 | 2350 | 2400 | 2600 | ||
| 寬Widht | mm | 565 | 660 | 380 | 1010 | 1515 | 1515 | 1515 | |||
| 高Height | mm | 490 | 620 | 735 | 890 | 1300 | 1300 | 1300 | |||
| 總重量 (不包括耙斗和滑輪) Total weight | kg | 390 505 | 665 860 | 1155 1500 | 2125 2745 | 3620 | 3730 | 4120 | 90 | 1500 | |
